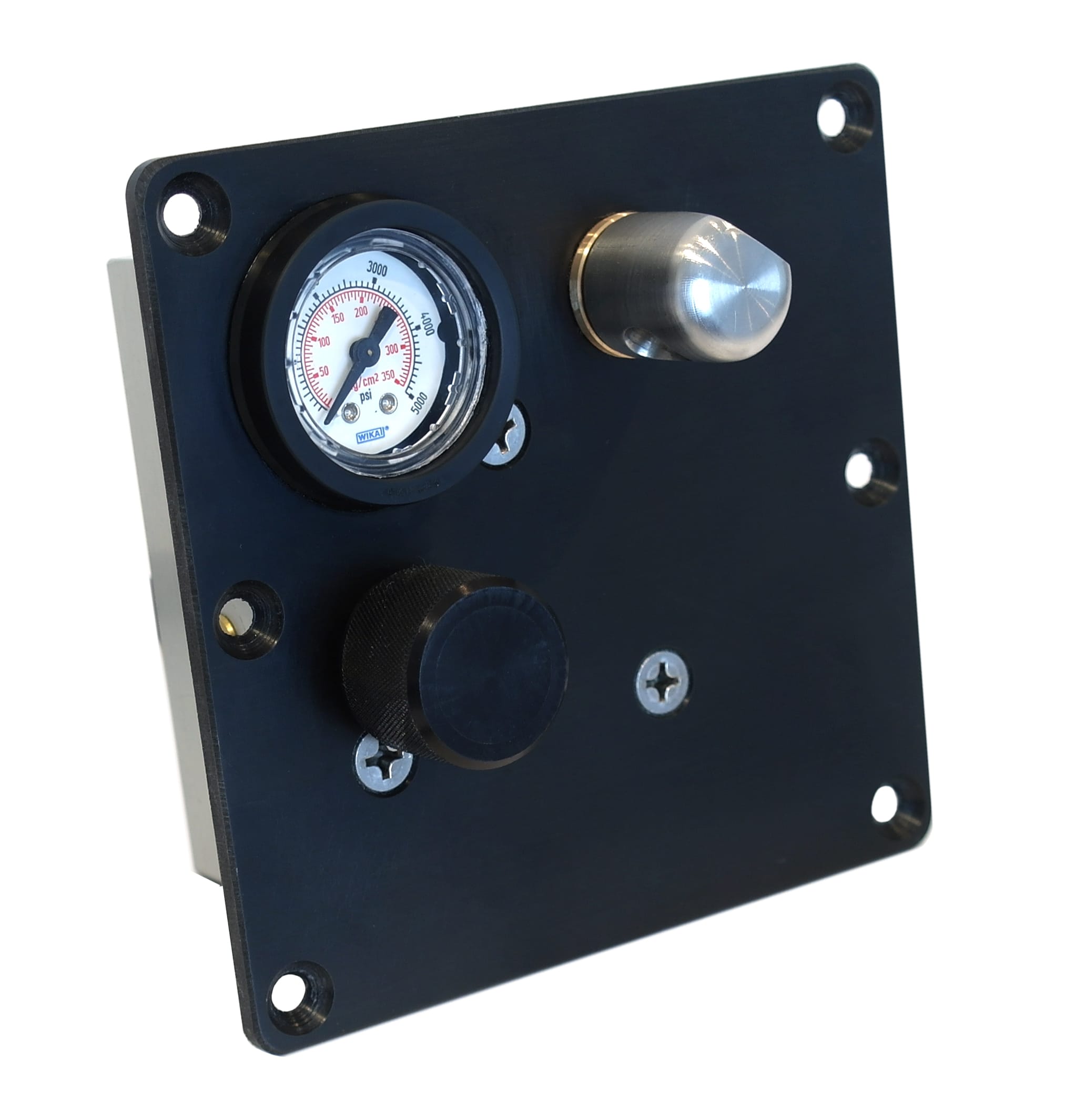

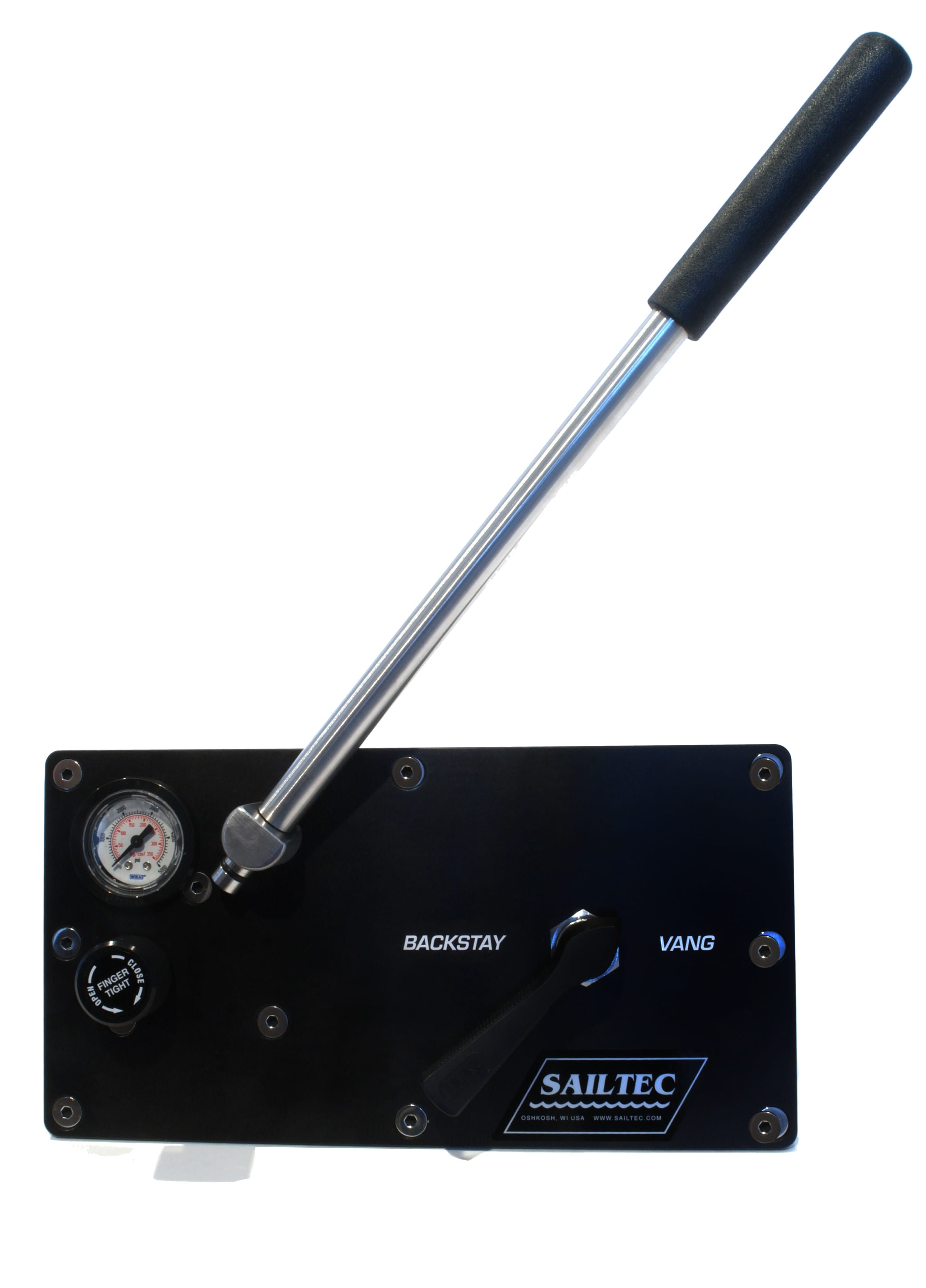

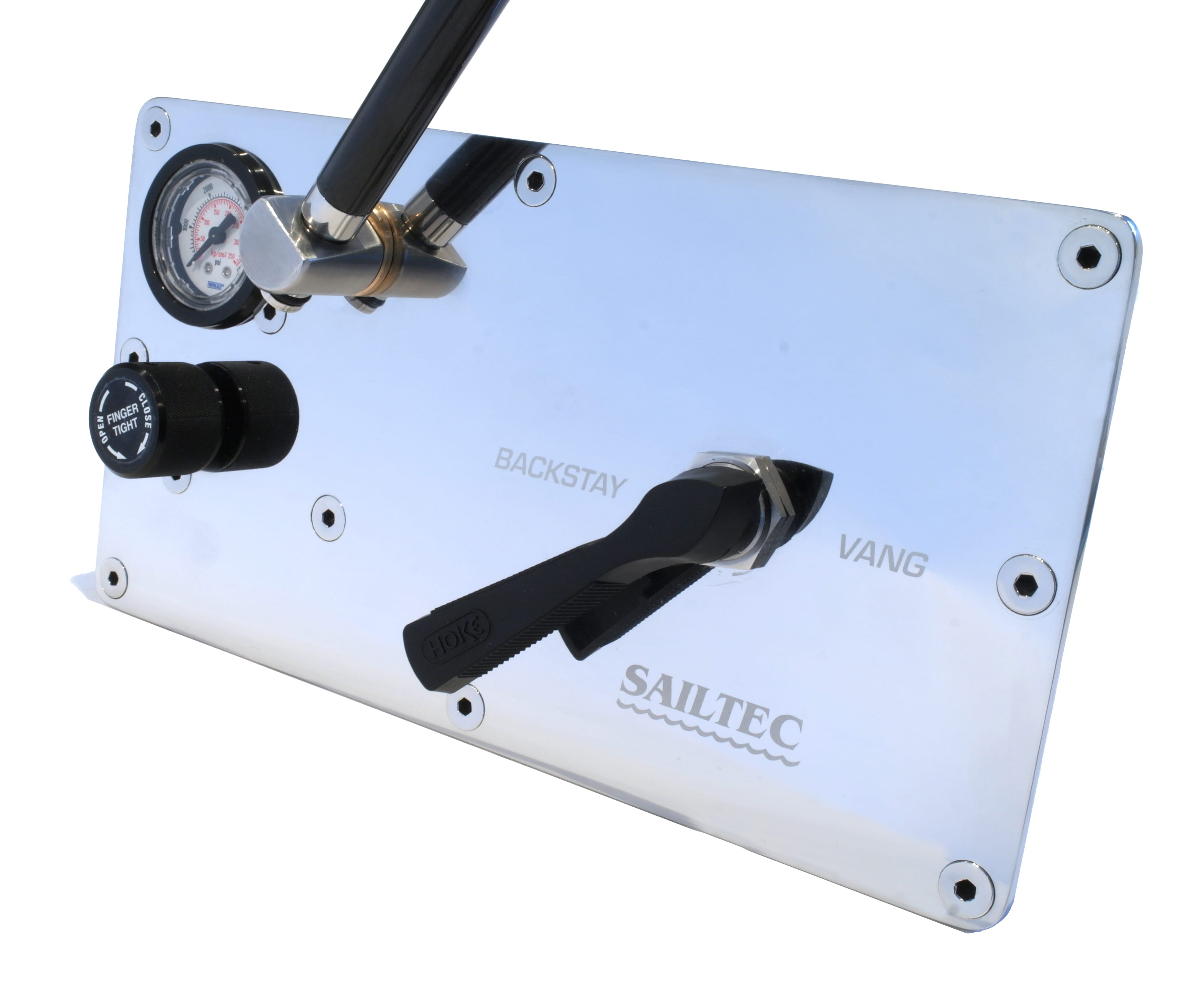

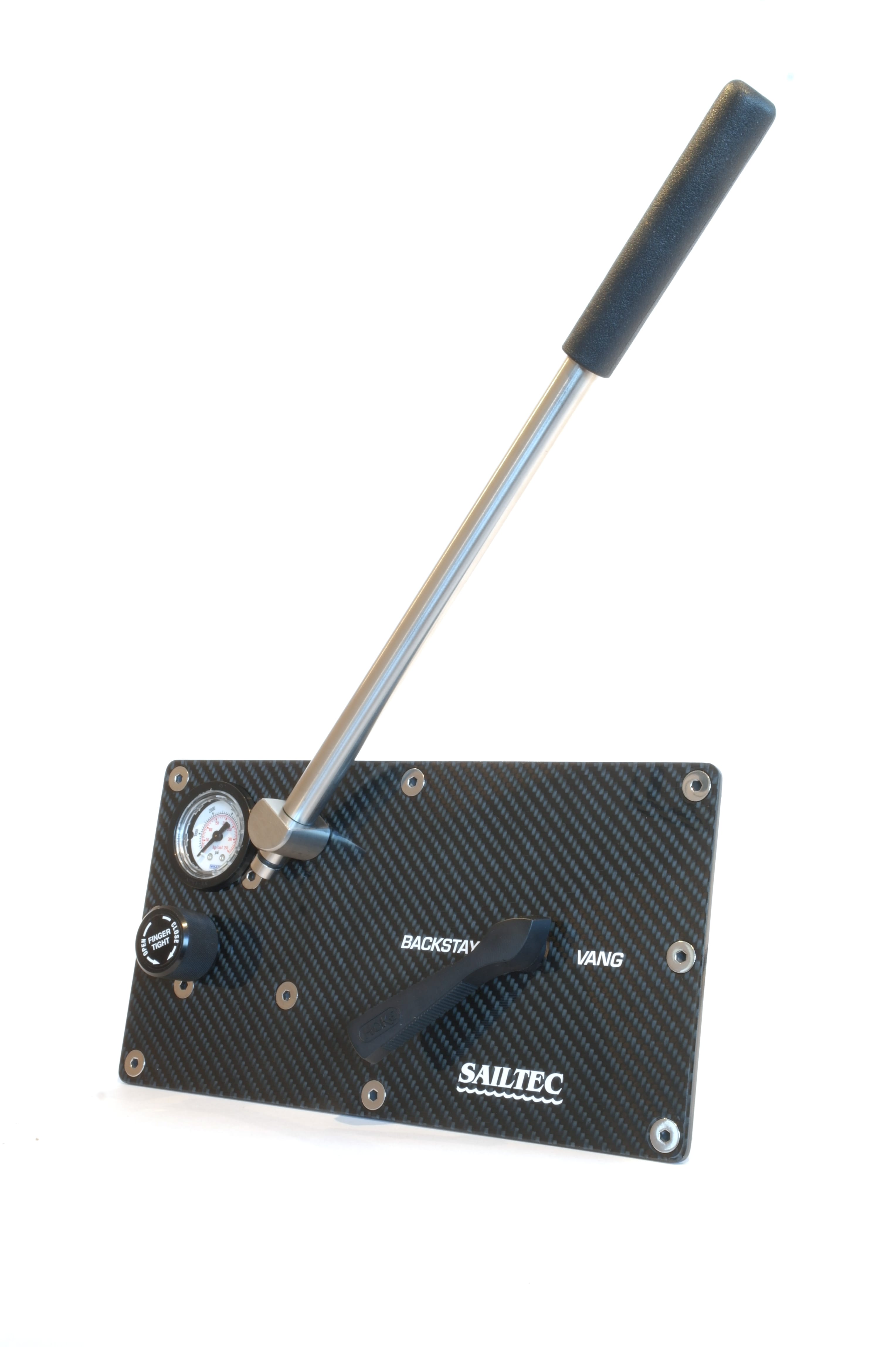

Model T6FB

Shallow Projection/Flat Back Single Action Panel Pump

Space Saving Panel Pump
Compact*High Volume*High Power

This popular, single-acting hydraulic pump provides a popular yet economical option for remote cylinder control.

FEATURES:
• Shallow 2 ¬-1/16" depth
• 3.3 ml of oil per stroke
• 5,000 psi (350 bar) Pressure Output
• Unlimited Mounting Options
• SAE ports with Zero Leak® Plugs

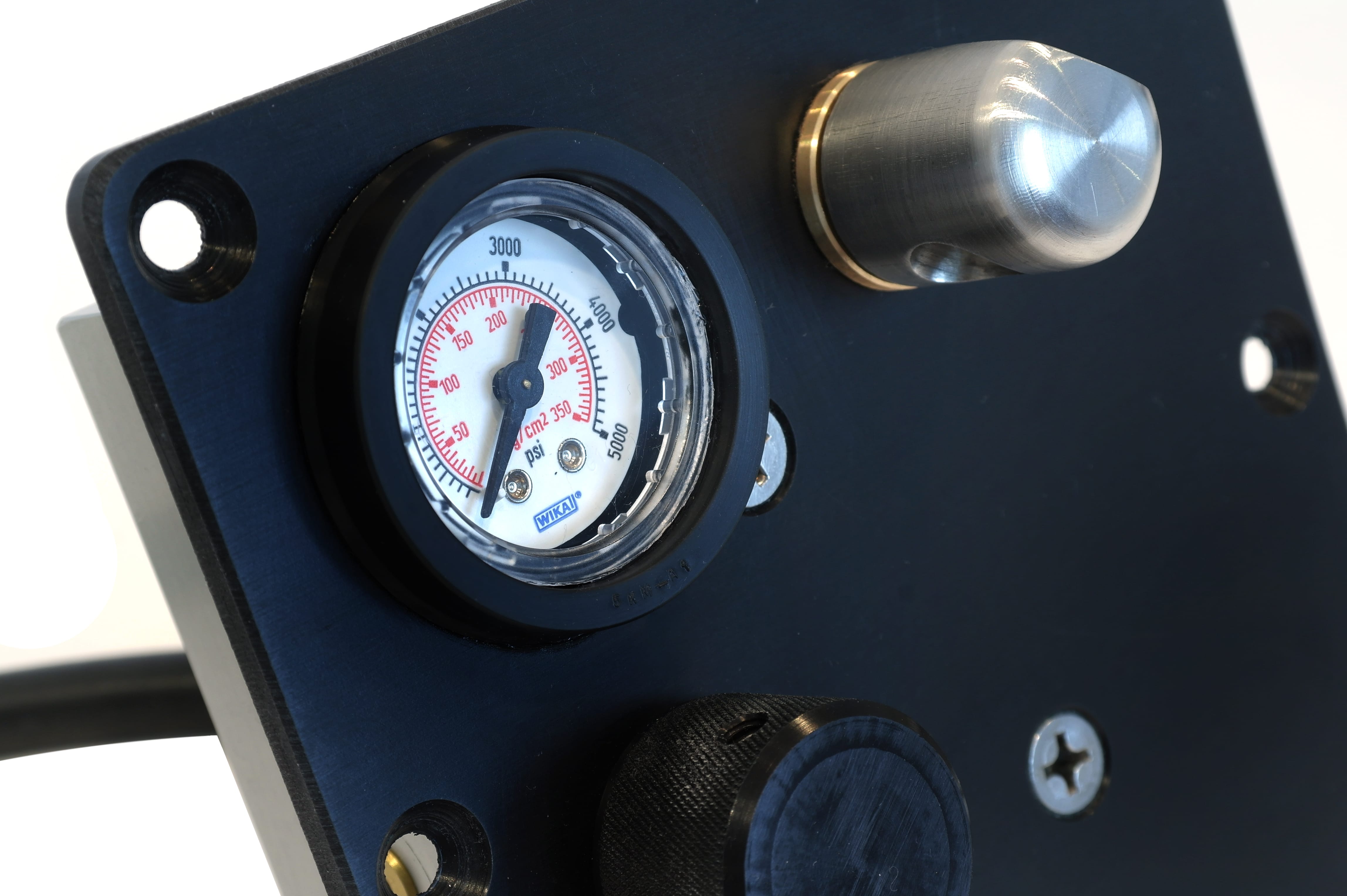

• Large Easy to Read Gauge

SAILTEC's T6FB Single Acting Panel Pump operates many marine hydraulics including:
• Backstay
• Forestay
• Outhaul
• Flattening Reef
• Cunningham
• Boom Vang
• Pivoting Keels
• Retracting Keels
• Canting Keels
• Pivoting Centerboards
• Transom Gates
• Hatch Doors
• Swim Platforms
• Deflectors

T6 FLATBACK ATTRIBUTES
• Single acting panel pump is economical to purchase and maintain.
• 5,000 psi pressure output allows system to use smaller cylinders, which are lighter & cost less.
• Small 6" by 6" panel face dimensions and shallow 2 ¬⁄" depth provides endless mounting choices.
• Flush pump surfaces allow installation into steering pedestals and other difficult mounting locations.
• Modified pump bore orientation & longer piston stroke produces 3.3 ml of oil.

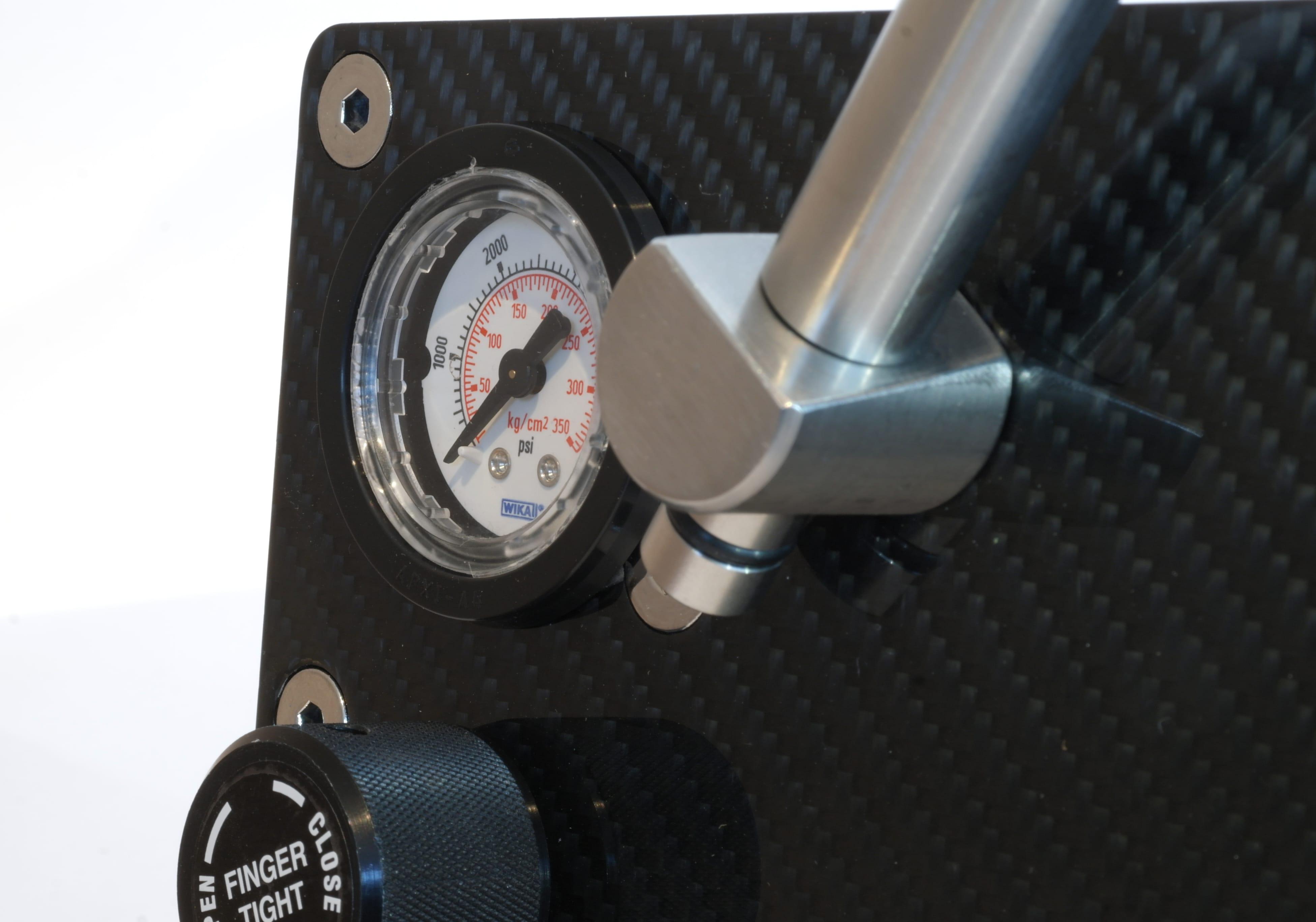

• New slim profile 316 stainless steel handle with soft comfortable handgrip.
• SAE style ports with Zero Leak® plugs for ease of maintenance.
• New custom molded single piece poly oil reservoir for easy mounting and enhanced appearance.
• Can easily replace most original SAILTEC T6 model panel pumps.

Cylinder Rams	To Retract 10" (254mm)
Cylinder Rams	Pump Strokes Needed	Seconds Needed (when pumping two strokes per second)
-10	58	30
-12	84	45
-17	124	70
-22	160	90

Model T5HS

t5hs Specification Table

This new style panel pump adds style, speed, and greater functionality to the already powerful T5 Panel. Careful sculpting of internal parts and passages has enabled us to increase the speeds and efficiency of the pump, change the location of the gauge and handle, and improve the face design.FEATURES:
• Compact and Light Weight
• Shallow Mounting Depth
• Large Easy to Read Gauge
• Double Acting Pump Design
• 5,000 psi (350 bar) Pressure Output

SAILTEC's Hydraulic Power-Pack operates many marine hydraulics including:
• Backstay
• Forestay
• Outhaul
• Flattening Reef
• Cunningham
• Boom Vang
• Pivoting Keels
• Retracting Keels
• Canting Keels
• Pivoting Centerboards
• Transom Gates
• Hatch Doors
• Swim Platforms
• Deflectors

T5HS AUTO SHIFT ATTRIBUTES
• High Oil Output (13 ml per cycle) for fast cylinder action.
• 5,000 psi pressure allows for use of smaller diameter cylinders.
• Requires only 7" x 10" of area.
• Only 3.25" mounting depth allows mounting in many previously restricted areas.
• Large two-inch diameter gauge with psi and bar scales.

Cylinder Rams	To Retract 10" (254mm)
Cylinder Rams	Pump Strokes Needed	Seconds Needed (when pumping two strokes per second)
-10	27	14
-12	39	20
-17	58	29
-22	75	38

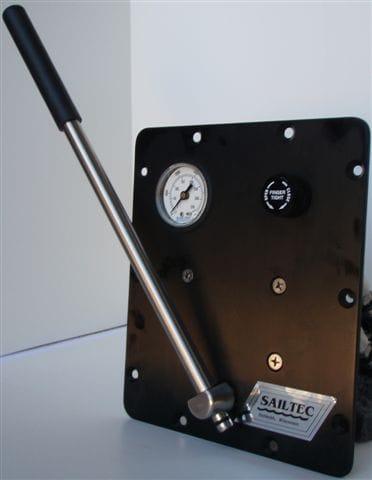

Model T5

Specification Table

Model T5, proven for rugged, trouble-free operation, the SAILTEC T5 Model has been time and race tested with installations worldwide. The T5 Model outperforms competing systems handily.

FEATURES:
• The most popular combination of performance and economy
• Double-acting
• Very fast—up to 5.0 ml/stroke
• Small footprint
• Self-purging of air, and self-priming
• Proven durability
• Easy to install

• CONSTRUCTION:
Aircraft-quality aluminum
• Filtered intake from reservoir
• Adjustable relief valve
• Nearly flush gauges
• Valves zero leakage to 6000 psi
All panels come complete with handle, hardware, reservoir, reservoir hose and high- pressure hose.

APPLICATIONS

SAILTEC T5 remote pump provides fast hydraulic cylinder action.

SAILTEC T5 remote pump can power multi-function systems with the use of SAILTEC's selectable valving panels. These valving systems can provide hydraulic power to two or more cylinders and allows flexible design system.

Cylinder Rams	To Retract 10" (254mm)
Cylinder Rams	Pump Strokes Needed	Seconds Needed (when pumping two strokes per second)
-10	31	16
-12	44	22
-17	65	33
-22	84	42
